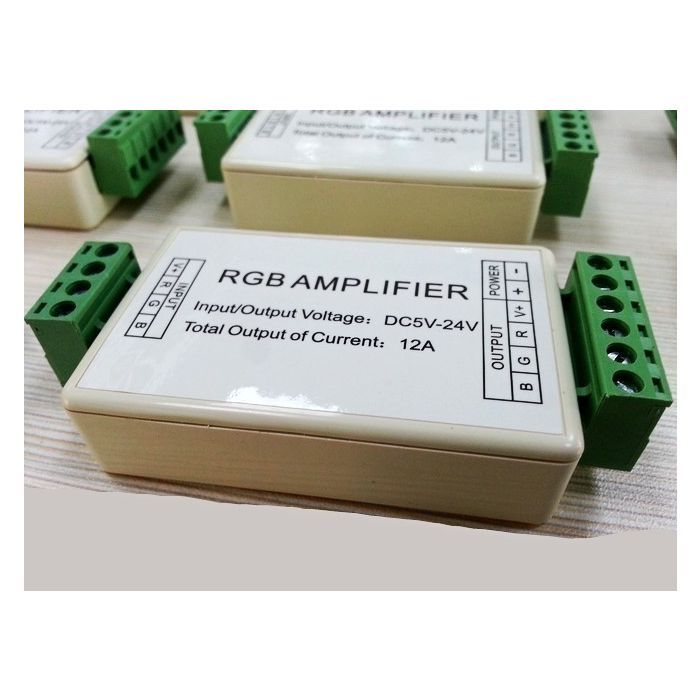

12A Mini RGB Amplifier RGB LED Booster DC 5V 12V 24V

$8.32
In stock
SKU
12A Mini RGB Amplifier RGB LED Booster DC 5V 12V 24V

12A Mini RGB Amplifier RGB LED Booster DC 5V 12V 24V  is high quailty LED product for lighting decoration projects, For big order or customized order, Pls feel free to contact service@vozop.com

Vozop.com supply advanced, durable and effective LED products to USA, UK, Germany, France, Spain and other counties for many years.  Quality LED lighting equipment and systems with the latest technology.Quick shipping with tracking number, easy and safe ordering with PayPal.

This LED amplifier is a constant voltage power repeater and works with DC 5V to DC 24V LED strips and other devices.

It is suitable for all of our RGB controllers to expand power output.
Input:  Screw terminals for easy connection to our male barrel plug or stripped power supply wires.
Output:  Screw terminals for easy connection to our RGB Flexible LED Strips or control cable.
You can connect and control up to 4A/Ch of output (4x rolls of our RGB Flex Strip).
Supports PWM (Pulse-Width-Modulation) control for 0-100% Dimming and Full Color Control.
You can stack amplifiers (2x repeaters connected = 8A/Ch) (4x repeaters connected = 16A/Ch)
Simply connect the output of one of our RGB Controllers (DMX, IR, or RF) to the input of this controller.

Then, connect a power supply to the (+) and (-) and connect your RGB LED Strips to the Output.

Suggested Uses

Simply connect the output of one of our RGB Controllers (DMX, IR,

or RF) to the input of this controller. Then, connect a power supply

to the (+) and (-) and connect your RGB LED Strips to the Output.

Led Color

N/A

Mounting Options

Other

Voltage

DC 5V to 24V

Wattage

4A/Ch

Output Power

4A/Ch - 48W/Ch

Number Of Chanels

3

Rated Amps / Ch

4A/Ch

Power Input: Connection Type, Voltage, Amperage

Screw Terminal

Output Connection Type

Screw Terminal

Can Power/Control (xx) Feet of strip

Up to 64' of RGB Flex Strip or 4A/Ch

Max Connected Strip Length From Each Power Connection

at full brightness (white) we recommend you only connect 2 rolls from

each power connection for accent lighting say about 25% you can connect

8x rolls end to end

Controllable By

Any of our Controllers

Suggested Accessories

Male Power Connector for connecting to power supplies



Common Anode is default for this item, if you need common cathode style,

pls email us to confirm this.



Package Included:

1 Piece of  4A Per Channel Mini RGB Amplifier

Mini_RGB_Amplifiers_4A_Per_Ch

RGB_Amplifier_4ACh_for_interfacing

12A_Mini_RGB_Amplifier_Constant_Voltage_Power_Repeater_LED_booster

12A_Mini_RGB_Amplifier_Constant_Voltage_Power_Repeater_LED_boosters

12A_Mini_RGB_Amplifier_Power_Repeater_LED_boosters

CE and RoHS approved
