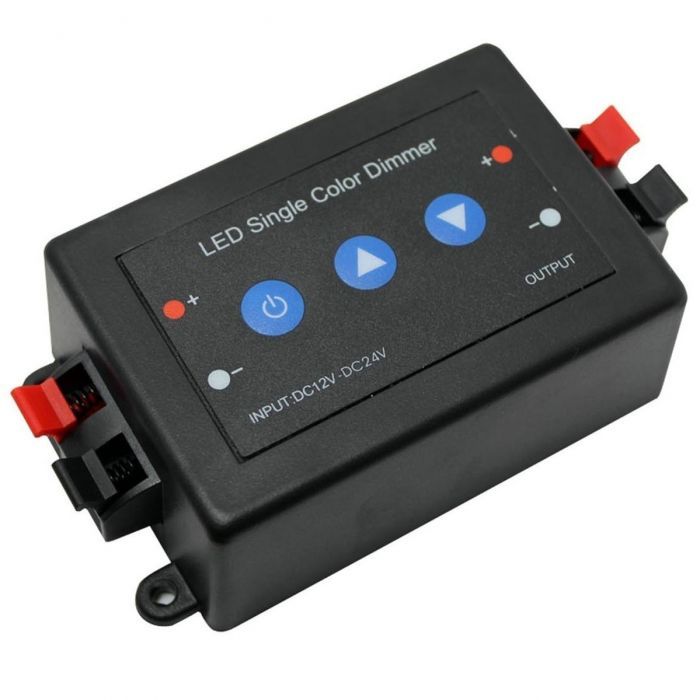

Button Press Single Light LED Dimmer Controller DC 12V 24V 8A is a controller that can adjust brightness infinitely,
its control mode is key -press control, you could adjust light to the appropriate lighting brightness in accordance with
your actual need.
Working temperature: -20~60 °C
Supply voltage: DC, 12V, 24V
Output: 1 channel
Net weight: 100g
Gross weight: 130g
External dimension: L110 * W56 * H34 mm
Packing size: L122 * W85 * H42 mm
Rated load current: <8A
Output power: 12V<96W, 24V<192W
Package Included:
1 Piece of Button Press Single Light LED Dimmer Controller DC 12V 24V 8A
1 Piece of User's Manual
Direction for use:
1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not
occur between connecting wire before you turn on the power;
2. Adopt key-press control,its function as follows:
△key is for increasing brightness,
▽key is for reducing brightness.
CE and RoHS approved
