With this high end LED WIFI Controller, You can use smart mobile phone iPhone or Android to control the LED lights.
It would control RGB LED Strips and Single Color LED Strips.This Controller is with twin antennas, it would only control
RGB LED Strips and Single Color LED Strips.
Impress the neighbors and your friends? This super iPhone and Android Wifi color change LED strip controller enables
you to control the colors of your LED RGB LED strip kit straight from your phone. Why? Because you can!
The kit comes with, wifi receiver box that the LED strip connects to, Iphone/Android installation CD and standard remote control.
The kit is very simple to install and comes with a superb guide to advise you on the set up process.
Supplied with Wifi receiver, hand control and CD installation disc
3 Channel
4 amps per channel
Total 144 Watts
Installation CD supplied
Works with Iphone or Andorid systems
50 Meter working range
LED-WiFi controller is following the traditional with infrared, RF technology controller foundation, it is birth of market
and customer's demand, it is one type controller which integration the newest WiFi technical in the market. It makes
the LED control more convenience, more hommization. We can use an Android system or iOS system mobile phone
to install control software, then it can control LED, this is the wishes of every customer. Use WiFi technology can make
our control range more wider, can get rid of narrow space constraint, in building can control more than 50m, in outdoor
can control more than 100m. In the condition of not use the mobile software, also can use the remote control to control,
very convenience, bring many choices for you.
1:Working temperature: -20~60 celsius
2:Power supply method: AAA*3
3:Supply voltage: 1.5V*3
4:Standby power: 0.015mW
5:Standby current: 3uA
6:Working current: 200uA
7:Emission current: 10mA
8:Remote control distance: about 50m
9.Standby time: 6 month
1.Name:Dream Color
2.Runtime platform: Android version support Android system (better one can support
Samsung, HTC), iOS version support iOS system, equipment must have WiFi function.
3.Byte: Android version(622K)IOS version(581K)
4.Language: English
5.Category: communications
6.Free, green, no plug-ins
1.Working voltage: DC 5~24V
2.Output control: can flexible control 3 channel, 2 channel, 1 channel LED lamps.
3.Output current: 4A*3
4.Connect mode: common anode
5.External dimension: L107*W65*H30(mm)
6.Receiving sensitivity: 802.11b DSSS(-5dBm),802.11b CCK (-10dBm),802.11g
OFDM(-15dBm)

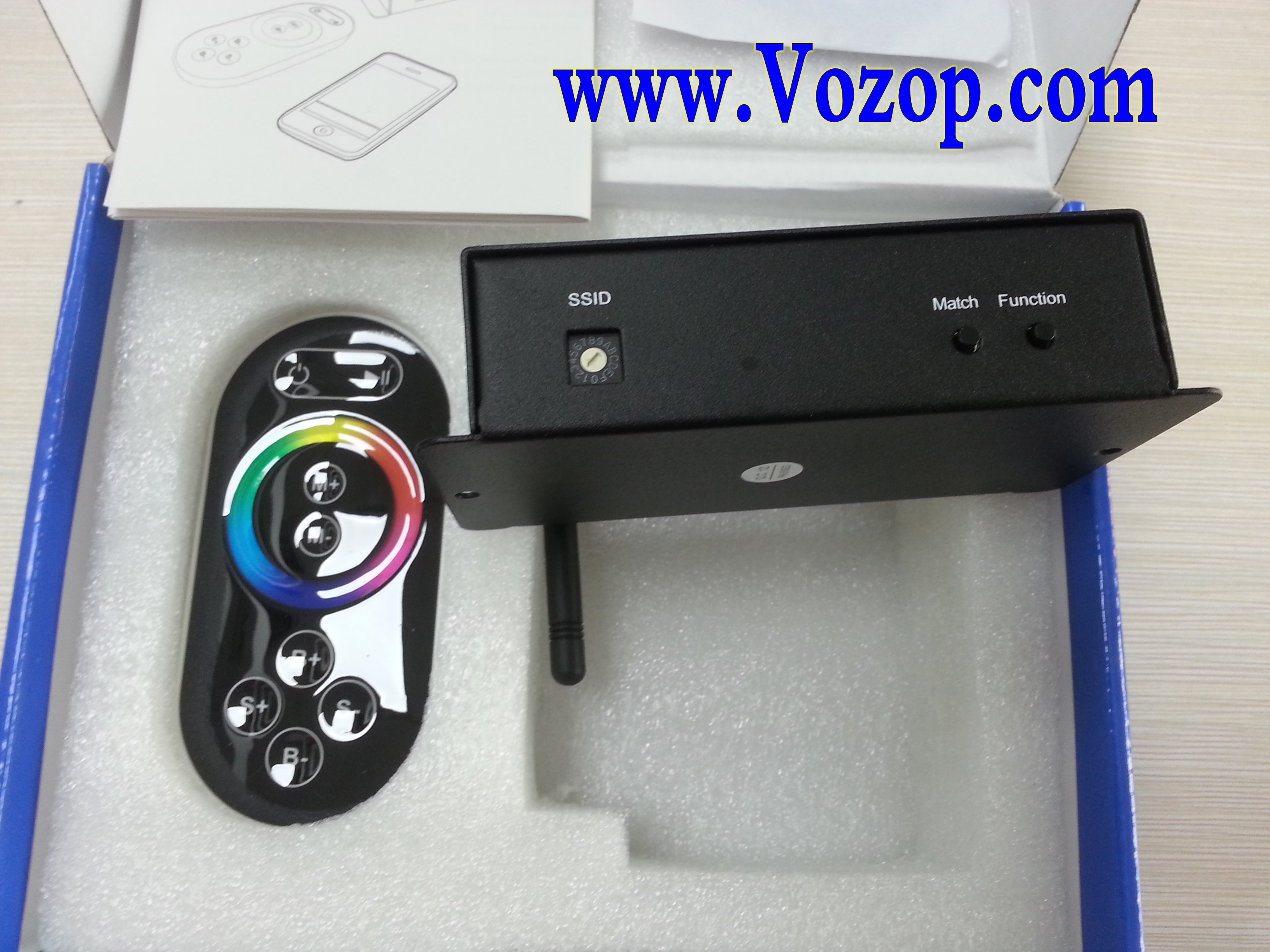

Package Included:
1 Piece of Wifi Controller Receive Box
1 Piece of RF Remote
1 Piece of Manual
1 Piece of Mini CD
Following is controlling color temperature and brightness two mode page:
We supply all kinds of led controllers to USA, UK, German, Spain, France, Italy, Sweden and a lot of countries:
CE and RoHS approved
