Origin: CN(Origin)
Power Source: DC
Controled Method: SD card
Model Number: WU-SHMX-18CH-DIY
Features: programmable
Remote Distance: Null
Item Type: RGB Controler
Material: metal
Warranty: 1 year
Wattage: 450W@5V,1080@12V,2160@24V
Applicable Lights: single color LED, RGB LED
Certification: ce
Certification: ROHS
Oscillation frequency: NULL
Connection Mode: terminal
Max. Load Power: 2160W(24V)
Voltage: 5-24V
Power input: 1 power supply to 3 power supply
Output: 5A/CH
program software: LEDmagic 2021

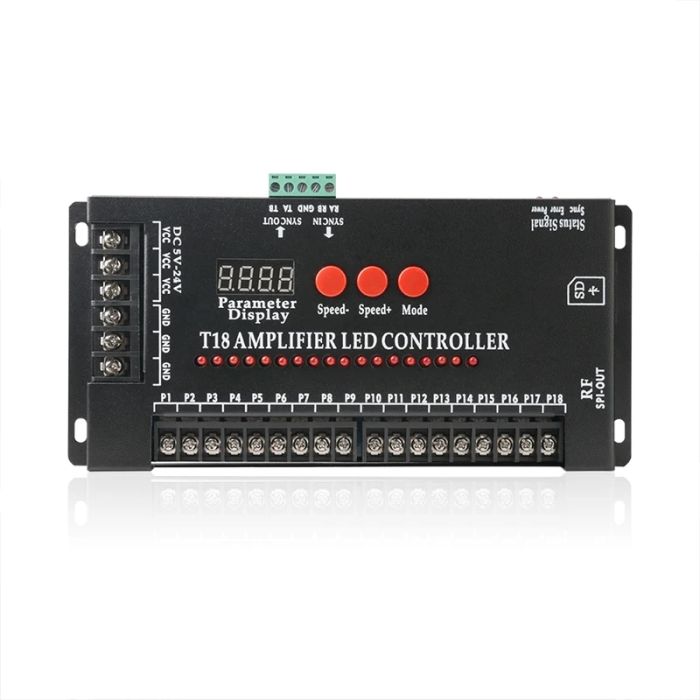

This is a controller for DIY light show,
which mixed SD programmable pixel light controller function and decoder function, make it drive common LED strip directly.
5A/CH output, and 3 power supply max. input, can suit many using case.
18CH output for 18 single color strip light, or 6 RGB strip light, (each RGB use 3CH), if still not enough, there is also 9CH extender to improve the output channels.
You can program your own light show pattern on PC software LedMagic2021, same as LEDedit 2014, just make it 18 pixel like UCS1903, when output your file, choose w or RGB.
3 buttons for SPEED up, SPEED down, Mode selection.
When you use, please check the following connection carefully, especially when you use 2 or 3 power supply,
the KEY is :
1. Only connect 1 power supply V+ and V- to controller input, all lights V- connect to controller output, V+ to power supply V+ directly.
2. Only connect V- of the second and third power supply to controller, and connect V+ of the last 2 power supply to your light V+ directly.
CE and RoHS approved
