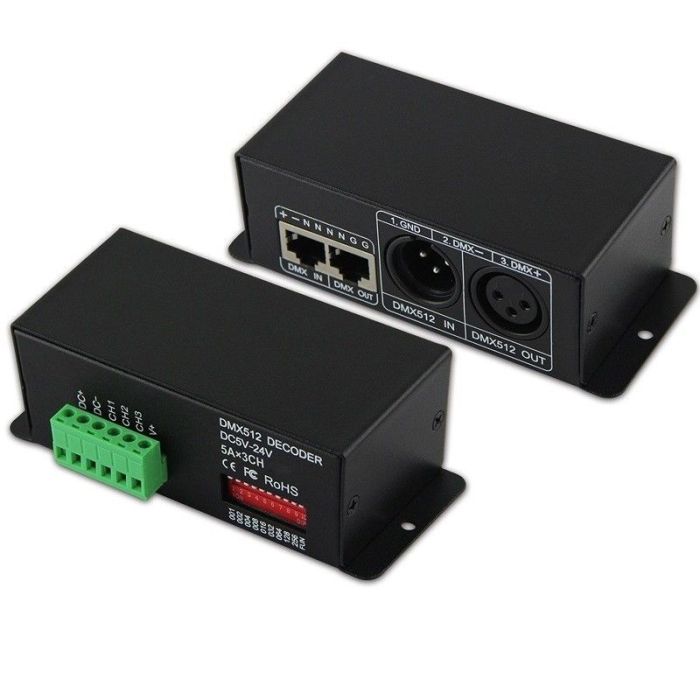

BC-803 RGB Bincolor Led Controller DMX512 3CH PWM DMX Decoder

In stock
BC-803 RGB Bincolor Led Controller DMX512 3CH PWM DMX Decoder

BC-803 RGB Bincolor Led Controller DMX512 3CH PWM DMX Decoder is high quailty LED product for lighting decoration projects, For big order or customized order, Pls feel free to contact service@vozop.com

Vozop.com supply advanced, durable and effective LED products to USA, UK, Germany, France, Spain and other counties for many years.  Quality LED lighting equipment and systems with the latest technology.Quick shipping with tracking number, easy and safe ordering with PayPal.

Feature function:

Input standard DMX512 protocol,Address can be set by DIP.

Automatically adapt input voltage DC5V-24V.

3 output channels, 256 scale each, RGB driving control.

10 self-changing modes, 8 speed levels.

Max output 5A*3CH.

Product parameter:

Product Model:BC-803

Input voltage:DC5V-24V

Max load current:5A/CH×3

Output Power:180W/360W(12V/24V)

Output Scale level:256 levels

Input signal:DMX512/1990

Output signal:3 constant voltage PWM

Output DMX Channel:3Chs or 4Chs (4th CH is shutter strobe)

DMX512 socket: Standard XLR-3R,RJ45 port

Product Dimension:L125×W52×H40(mm)

Package Size :L135×W70×H50(mm)

Weight (G.W) :320g

Package Content:

1 Piece of BC-803 RGB Bincolor Led Controller DMX512 3CH PWM DMX Decoder

1 Piece of User's manual


CE and RoHS approved
