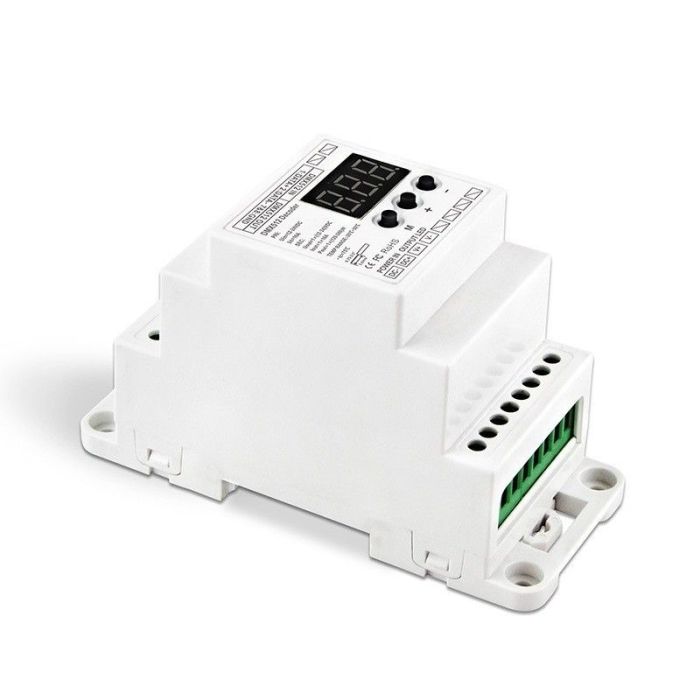

BC-831-DIN-RJ45 Bincolor Led Controller DIN Rail DMX512 Decoder Digital Tube Display

In stock
BC-831-DIN-RJ45 Bincolor Led Controller DIN Rail DMX512 Decoder

BC-831-DIN-RJ45 Bincolor Led Controller DIN Rail DMX512 Decoder Digital Tube Display is high quailty LED product for lighting decoration projects, For big order or customized order, Pls feel free to contact service@vozop.com

Vozop.com supply advanced, durable and effective LED products to USA, UK, Germany, France, Spain and other counties for many years.  Quality LED lighting equipment and systems with the latest technology.Quick shipping with tracking number, easy and safe ordering with PayPal.

Welcome to use the Constant Voltage DMX512 Deloped coder which is deveonly for constant voltage LED lamps.

It adopted advanced micro-computer control technology to transfer standard DMX512/1990 signal to PWM signal.

One channel output, max 10A output each channel, 4096 Grey Scales. It can be used as DMX512 master or as DMX

decoder to connect computerized digital output console with analog silicon case and controls LED lamps of architecture and lighting.


Model: 1CH Constant Voltage decoder

Input voltage: DC12V-DC24V

Max load current: 1CH×10A

Max Output Power: 120W(12V)/240W(24V)

Grey Scale: 4096 levels×1

Input Signal: DMX512/1990

Output Signal: Constant Voltage PWM

Decode Channel: 1CH

DMX512 socket : RJ45

Dimension:  L111×W46×H66(mm)

Weight (G.W) : 130g

Package Content:

1 Piece of BC-831-DIN-RJ45 Bincolor Led Controller DIN Rail DMX512 Decoder Digital Tube Display

1 Piece of User's manual


CE and RoHS approved
