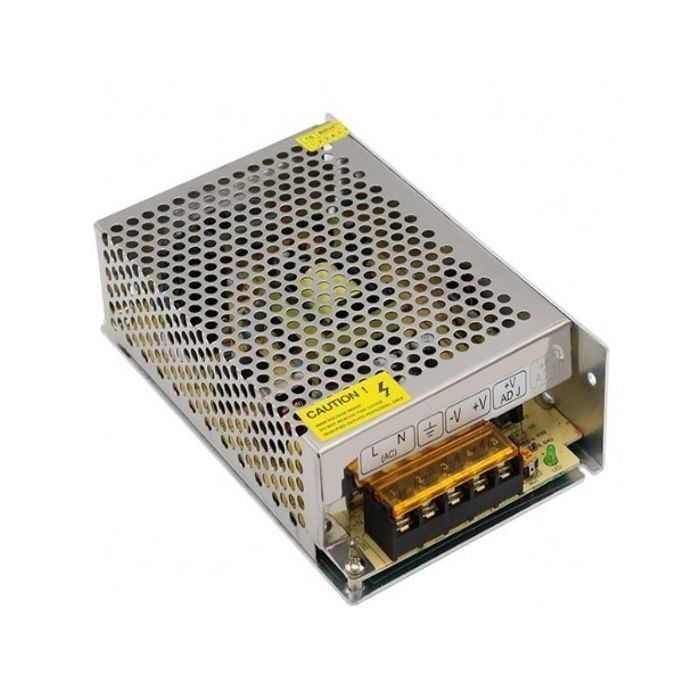

DC 15V 5A 75W Switching Power Supply Transformer AC to DC LED Driver
Specification
DC output power: 75W
DC Output voltage: 15V
Output voltage range: ±1%
Rated output current: 5A
Output current range: 0~5A
Wave and noise: 75mVp-p
Inlet stability: ±0.5%
Load stability: ±0.5%
Working temperature and humidity: -10~+60degree Celsius(Refer to output load derating curve),20%~90%RH
Store temperature and humidity: -20~+85degree Celsius,10%~95%RH
Efficiency: 82%
Adjustable range for DC voltage: ±10%
AC input voltage range: 5~132VAC/170~264VAC selected by switch 47~63Hz,240~370VDC
AC Inrush current: Cold-start current 18A/115V 36A/230V
Leakage current: <0.5mA/240VAC
Package Include:
1 Piece of DC 15V 5A 75W Switching Power Supply Transformer AC to DC LED Driver
CE and RoHS approved
