Origin: CN(Origin)
Power Source: AC
Controled Method: PC online control

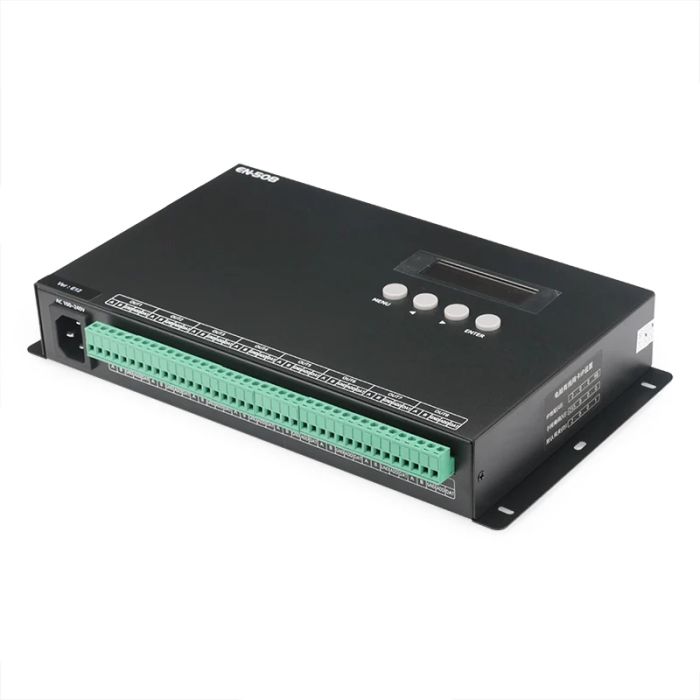

Model Number: EN-508
Features: art-net support
Remote Distance: NULL
Item Type: RGB Controler
Material: metal
Warranty: 1 year
Wattage: 5w
Applicable Lights: addressable pixel light
Certification: ce
Certification: ROHS
Oscillation frequency: null
Connection Mode: RJ45, Terminal
Max. Load Power: 1024 pixel*8
Voltage: 110-240V
online control software: LEDplayer, Madrix
input signal: The RGB signal of Art-Net protocol, SW Ethernet Protocol
what is SW: signal of ledplayer
output signal: TTL (SPI) , RS485 (DMX512)
Pixel driven (Madrix) TTL: 4 universes x 512 channels x 8 ports
Pixel driven (Madrix) DMX: 2 universes x 512 channels x 8 ports
music control: yes
cascade connection: yes
DMX512 address writting function: yes
timer function: yes
with SD card: no
size: L285*W156*H44 (mm)
N.g.: 1.5Kg
FUNCTION OVERVIEW
1. Support access and control by Madrix software or LED Player software.
2. Unique data processing method for the display with complex shape, it’s easy to make a solution.
3. It supports 1,000,000 channels or cascade connection of 400 pieces controllers.
4. Use Art-Net Tool software to set the IP address of the controller online (which can also be set by key of the
controller), the self-check chip, the baud rate and the number of channels.
5. Support one-key addressing function, LED Player software search equipment and detection of packet loss rate.
6. Support our IAP-Loader software upgrade online.
7. 8-port data-independent signal output (with the isolation), control variety of regular chips in LED digital tube screen,
LED pixel light screen, and etc.
SW Single chip: D**S, D**J.
Single-wire: TM180*-400K/800K, UCS19**, UCS29**, WS2811/12, TLS3001(1Mhz), SM167**.
DMX512: SW-D, SW-U, UCS512A/B/C0/C4/D/E0/EH/G4/G6, DMX512AP/SM512,
SM16500P/511/512, SM17500P/512P/522P, SM17512/522, SM18522P/PH,
SM16823E/824E, Hi512A0/A4/A6, TM512AB3/AL1/ACx/AD/AE, QED512P,
GS8512/513/515, standard DMX512 lighting fixture on the market.
Please refer to the "CHIP SUPPORT" section for addressing.
Break-point resume: UCS5603, WS2818, GS8206, P9883, TM1914, XT1506S.
65536 gray scale: UCS8903, UCS8904, UCS9812, SM16813.
8. With professional LED Player software, user can make any effect by themselves.
9. Encryption function is available when use with customized controller.
10. The load capacity of different lighting fixtures is different. (If frame frequency is not required, load capacity of each
channel can be increased independently, and must test it in the factory.)
Background music function:
When you use a media to create your program/pattern, you can active background music function,
or you can insert a mp3 to be background music when playing your programs.
TECHNICAL PARAMETERS
Cover material: Iron
Input voltage: AC100V - 240V
Input signal: The RGB signal of Art-Net protocol, SW Ethernet Protocol
Output port: TTL & RS-485 * 8 ports
Pixel driven: Madrix software:
Single chip: 4 universes × 512 channels × 8 ports
Standard DMX512: 2 universes × 512 channels × 8 ports
LED Player software:
Single chip: 2880 channels ×8 ports, Single-wire: 3072 channels ×8 ports,
Standard DMX512: 512 channels ×8 ports, Extensible DMX: 1024 channels ×8 ports,
Break-point resume: 2160 channels ×8 ports, 65536 gray scale: 2160 channels ×8 ports.
Output power: 5W
Working temperature: -15℃～60℃
Relative humidity: ≤50%
Connecting mode: In parallel (address manually)
IP grade: IP20 (Prevent people from touching the components inside electrical appliance, prevent
object which diameter is more than 12.5mm from getting in, no special protection to water
or moisture.)
Working environment: 1.Please do not install the controller in magnetic, high pressure, high temperature orseriously wet environment.
2.Please do connect the earth safely in order to reduce risks of fire and damage which causeby short circuit.
3.Please ensure AC100-240V power supply is used, and same polarity is connected betweentransformer and controller in order to guarantee the proper supply voltage.
4.No waterproof function in the control system, please pay attention on rainproof and waterproof during installing.
Net weight: 1.5kgs
Size: L285*W156*H44
Suppor IC：
SPI:TM180*-400K/800K, UCS19**, UCS29**, SM167**.
DMX512 lighting fixture:SW-D, SW-U, UCS512A/B/C0/C4/D/E, DMX512AP/SM512, SM16500/12, SM17500P/12P/22P,
standard DMX512 lighting fixture in the market, common DMX512 decoders.
Breakpoint resume:UCS5603, WS2818, GS8206, P9883, TM1914, XT1506S.
DMX512 address writting function IC supported
CE and RoHS approved
