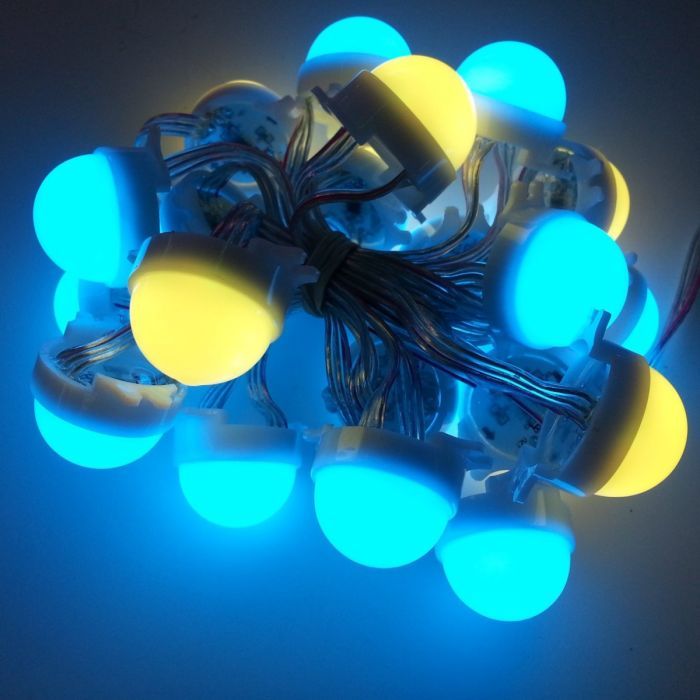

30mm UCS1903 Led Pixel Module 12v 3LEDs 5050 RGB Point Light

$18.21
In stock
SKU
30mm UCS1903 Led Pixel Module 12v 3LEDs 5050 RGB Point Light

30mm UCS1903 Led Pixel Module 12v 3LEDs 5050 RGB Point Light  is high quailty LED product for lighting decoration projects, For big order or customized order, Pls feel free to contact service@vozop.com

Vozop.com supply advanced, durable and effective LED products to USA, UK, Germany, France, Spain and other counties for many years.  Quality LED lighting equipment and systems with the latest technology.Quick shipping with tracking number, easy and safe ordering with PayPal.

IC type: UCS1903

Gary scale: 256

Current:18.5mA ±3%

Working voltage:DC12V

LED type: SMD 5050

Color: RGB full color

IC quantity: 1 piece per light, total 20ICs/sting

LED quantity: 3 piece per light, total 60LEDs/sting

3 piece of LED as a pixel

Power: 0.72W for 1 piece,  14.4W for 20pcs/String

Beam angle: 120 °

Light source life: 50 000 hours

Protection rate: IP65 Waterproof

Shell material: ABS anti-static

Distance between lights: approx 120mm

Cover Style:  Pls Choose

Package Included:

1 String of 20pcs 30mm UCS1903 Led Pixel Module 12v 3LEDs 5050 RGB Point Light (20pcs/string)

Connection

1) Signal wire: DC+, DAT, GND

2) DC+ and GND connect to power supplier; DAT and GND connect to controller

3) Relative Controller: SPI controller support UCS1903; when use DMX decorder, can connect to DMX system

4) Support online control

Color and Display

1) Each pixel can be controlled individually

2) Can show any color

3) Can be used as flexible led display screen to show image and video

Installation Notice

1) Make sure the connection is correct according to the diagram

2) Pay attention to the parameters limit of voltage. DO NOT run over the peak value

CE and RoHS approved
