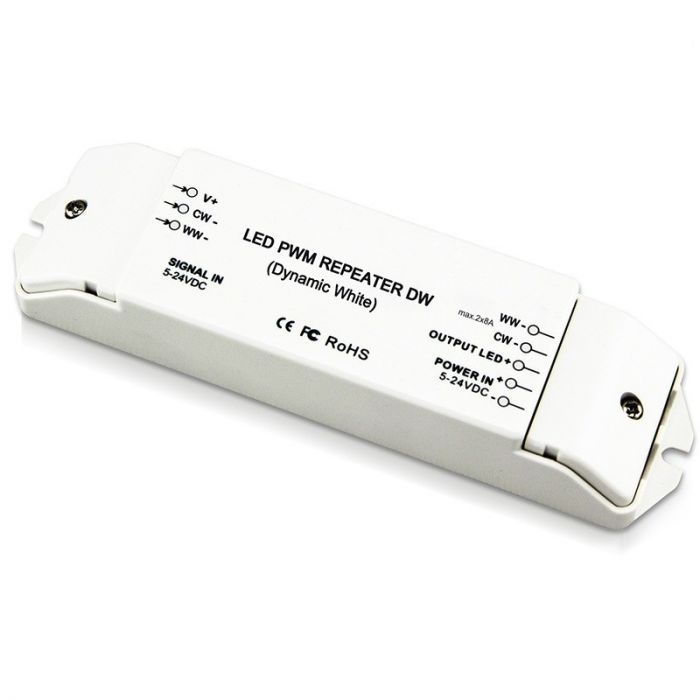

LED Power Repeater is suitable for all of our company's power-output style controllers' power expansion,
it accepts PWM control, unlimited quantity of power repeater to be connected theoretically. Also,
the power repeater of constant voltage model and constant current model could be connected freely,
suitable for synchronized controlling on different LED lamps.
Feature function:
Common anode input and output.
Sustain high frequency common anode PWM input signal.
Work with RGB controller, DMX512 decoder, LED dimmer for synchronous control, to fulfill abundant color changings.
Over current protection and short circuit protection.
3000V optoelectronic isolation.
Model Number: BC-962
Input power: DC5V-DC24V
Maximum load current: 8A/CH × 2
Output signal: Constant voltage PWM
The maximum output power: 80W(5V)192W(12V)384W(24V)
Product Size: L176×W46×H30(mm)
Packing size: L178×W48×H35(mm)
Product weight : 120g
Package Included:
1 Piece of BC-962 Bincolor Led Controller High Frequency 2CH Power Repeater DC5-24V
CE and RoHS approved
