Feature function:
Working voltage from DC12V~DC24V
Max output10A*1CH,10A in total.
0 - 10V to PWM dimming signal conversion.
Optical isolation protection for input & output.
Compatible with many brand dimming systems.
Product parameter:
Product Model:BC-330-10A
Input Voltage:DC12V-DC24V
Input Signal: 0-10V analog dimming signal
Max Load Current:10A/CH×1CH
Max output power:120W(12V) / 240W(24V)
Output Signal:Constant voltage PWM
Product Dimension: L125×W45×H36(mm)
Package Size:L131×W49×H49(mm)
Gross Weight:90g
Package Content:

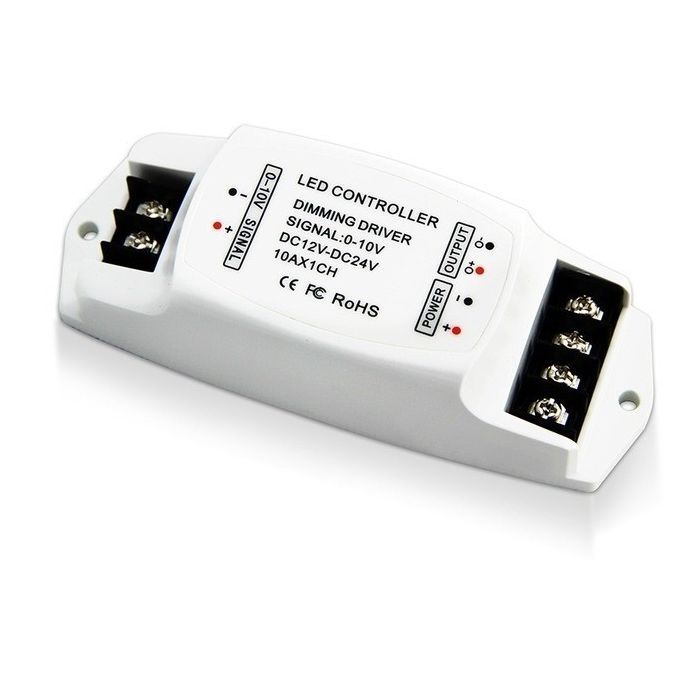

1 Piece of BC-330-10A Bincolor Led Controller PWM Driver 1CH 0-10v Dimming Control
1 Piece of User's manual
CE and RoHS approved
