DC 12V 24V 8A Surface Wall Mount LED Motion Sensor On Off Controller

$5.62
In stock
SKU
DC 12V 24V 8A Surface Wall Mount LED Motion Sensor On Off

DC 12V 24V 8A Surface Wall Mount LED Motion Sensor On Off Controller  is high quailty LED product for lighting decoration projects, For big order or customized order, Pls feel free to contact service@vozop.com

Vozop.com supply advanced, durable and effective LED products to USA, UK, Germany, France, Spain and other counties for many years.  Quality LED lighting equipment and systems with the latest technology.Quick shipping with tracking number, easy and safe ordering with PayPal.

Details

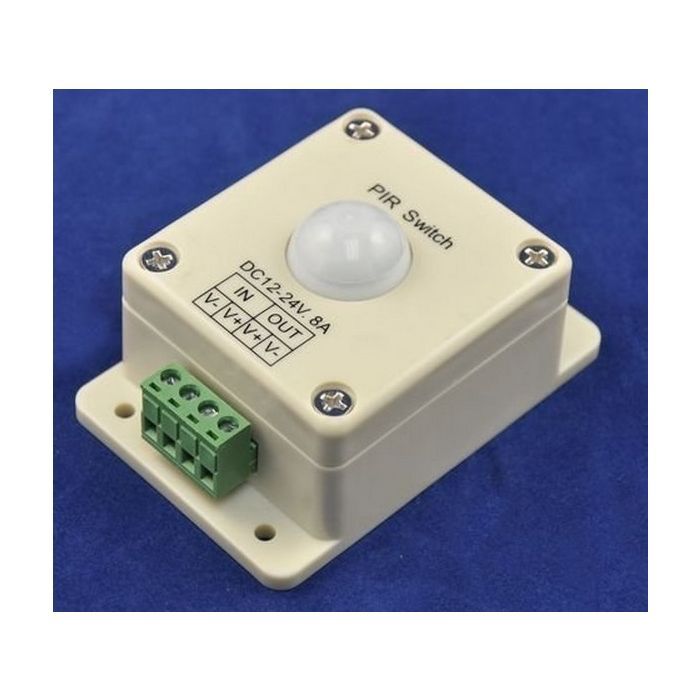

LED Motion Sensor On/Off  8A (Surface Mount)

This is a motion sensor to turn on/off flexible LED strips or other 12v or 24v devices!

This is a inexpensive surface mount detector that will turn your lights on when motion is detected and keep them on until about 10 seconds after it stops seeing motion.

This Motion Sensing On/Off LED Switch is  the perfect solution to light up any 12 or 24V DC LED product. Thanks to its motion sensor,

it detect any object/person moving on a 120º radius from the detector sphere. This is a great product to be installed where a constant light is not needed,

like hallways, pathways, warehouse basements etc.

Once activated, this On/off LED switch will stay on around 10 seconds.Connection is very simple as it has set down screw which will clamp the cables easily.

Note: there is no sensitivity adjustment on these so for small areas you may have to diffuse them to avoid false readings

Range approx 25ft

Detection Angle 120 degrees

Input:  Screw terminals for easy connection to our male barrel plug or stripped power supply wires.

Output:  Screw terminals for easy connection to our single color flexible LED strips or control cable.

Requires 12V DC input.~~If you use an 8A or 96W power supply, you can use this to control up to 50' of flex strip (This is based on the rated capacity.

You should be able to run longer lengths based on the actual capacity, but we don't guarantee it).

Suggested Uses

Hallways
Closets
Stairs
Basements
Utility Rooms
Garages
Attic
Under Cabinets
Shed
Solar
Gun Safes
Any dark area that you want to be light when motion is detected

note: there is no sensitivity adjustment on these so for small areas you may have to diffuse them

Led Color

N/A

Mounting Options

Wall Mount

Voltage

DC 12v to 24V

Wattage

96W at 12V and 190W at 24V DC

Number Of Chanels

1

Product Size (L)x(W)x(H)

(L) 3.5" x (W) 2.4" x (H) 1-3/4" in (L=89 x W=60 x H=44.5mm

Package Included:

1 Piece of LED Light Dimmer Controller

1 Piece of User's Manual

8A_Surface_Mount_LED_Motion_Sensor_On_Off

Motion_Sensing_On_Off_LED_Switch_LED_Conroller

CE and RoHS approved
