Specifications:
Size:3 Channel Mini
1.Input/Output Voltage: DC5V-24V
2.Total Output of current:max15A
3.Output:CMOS drain-open output,Max 5A each color
4.Channel:3 channel
5.Connecting Mode:Common anode
6.Working temperature: -20~60 celsius
7.Dimension:72x36x15mm
8.Weight:0.06Kg
Function:
1.Each DMX common controller occupied 3 DMX addresses,adopt coding switch set address.It is a Binary
numerical code switch is setting DMX original address code from 1 to 9.
1 is the lowest,and 9 is the highest.511 address codes could be setted in wall.DMX original address code
equal aggregate value from 1 to 0.
Dial the coding swich upwards(ON is setted 1),the value of bit can be gotted.On the contrary,the value of
bit is 0.For example:if you want to set 37 as the address code,you can only dial down the first,the third
and the sixth code switch value from 1 to 9 is 32+4+1,that is,the original address code of DMX512 is 37.
2.DMX signal can be received when coding switch FUN(10)=OFF.
Safety information:
1.The input voltage of this controller should be follow. The specifications,other high voltage would most
probably destroy it.
2.Never connect two wires directly in case of short circuit.
3.Lead wire should be connected correctly according to colors that connecting diagram.
4.Warranty of this product is one year,in this period charge,but exclude the artificial situation of damaged
Package Included:

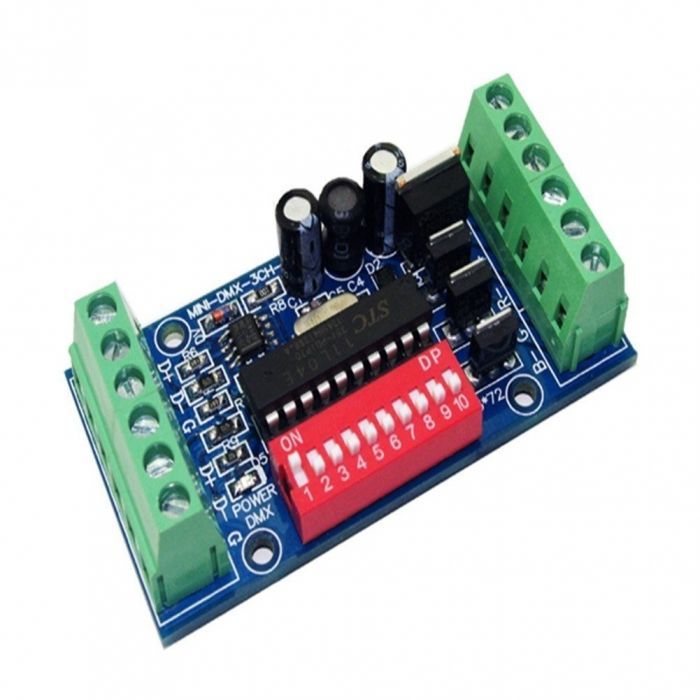

1 Piece of Mini 3CH DMX Subminiature Controller DMX512 Decoder MINI-DMX-3CH-V1
CE and RoHS approved
