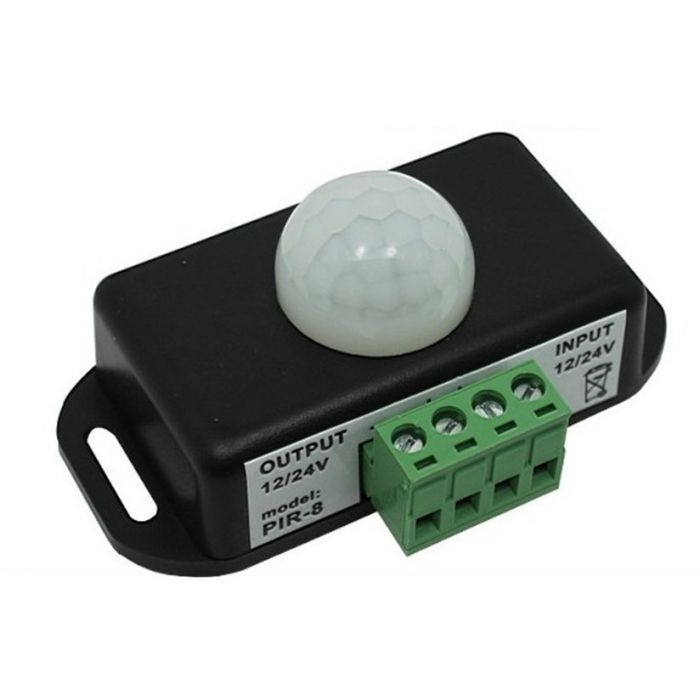

Motion Detection Sensor Switch LED Dimmer Time Adjustable Controller

$6.32
In stock
SKU
Motion Detection Sensor Switch LED Dimmer Time Adjustable

Motion Detection Sensor Switch LED Dimmer Time Adjustable Controller  is high quailty LED product for lighting decoration projects, For big order or customized order, Pls feel free to contact service@vozop.com

Vozop.com supply advanced, durable and effective LED products to USA, UK, Germany, France, Spain and other counties for many years.  Quality LED lighting equipment and systems with the latest technology.Quick shipping with tracking number, easy and safe ordering with PayPal.

The human body is an infrared detection sensor switch controller, the use of infrared detection control the load of the switch.

Users according to actual needs, the human body sensors installed in the appropriate environment.  And it is 1-10 minutes (adjustable)

Specification:

Working temperature: -20-60 ℃

Working voltage: DC12/24V

Output voltage: DC12/24V

Output: 1 channel

Sensing distance: 5 ~ 8 Meters.

Ham should angle: 60 degrees.

Output current: <6A

Delay time: 1-10min (adjustable)

External dimension: L76 Χ W35 Χ H34 mm

Gross weight: 50g

Package included:

1 Piece of Motion Detection Sensor Switch LED Dimmer Time Adjustable Controller

1 Pieces of User's Manual

LED_Infrared_Detection_Sensor_Controller_Lighting_Time_Adjustable

Direction for Use

1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between

connecting wire before you turn on the power;

2. There is a time setting knob on the back of the controller, rotate the knob, you can set the delay time of human body induction switch,

when detecting someone, it lights up the light, and after the time of people leaving reaches the set delay time, the light will be turn off automatically.

3. The controller signal output line and input line should be connected correctly.

CE and RoHS approved
