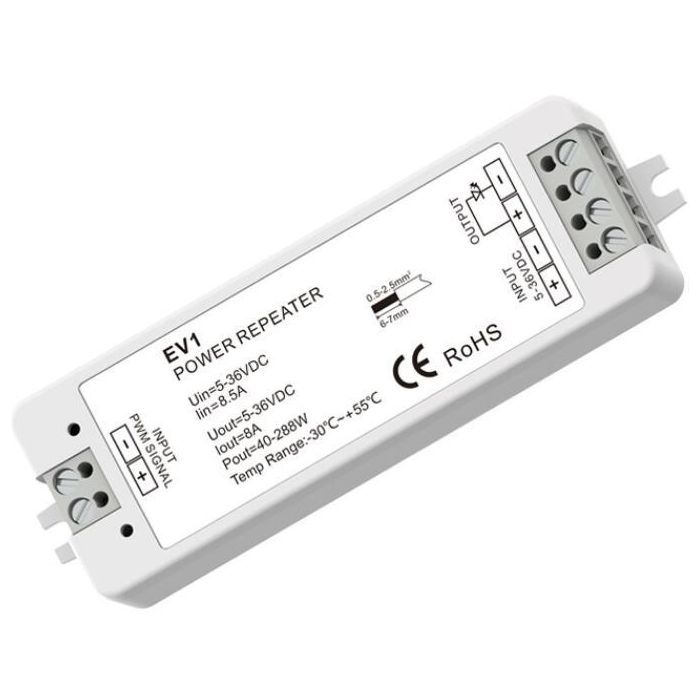

The EV1 is a 5-36VDC constant voltage LED power repeater with 1 channel, maximum 8A output,
which is designed to expand power output and receive PWM signal control. By adding one more power repeater,
the controller can control more LEDs, and unlimited power repeaters can be connected together to expand power output unlimitedly theoretically.
Feature
1.5-36V constant voltage power repeater.
2.one channel, 8A.
3.To receive PWM signal control.
4.Power repeater in series or in parallel to expand output unlimitedly
Technical parameters
Input voltage: 5-36VDC
Output current: 1CH, 8A
Output power: 40-288W
Working temperature: -30℃~55℃
Product size: L97×W33×H18mm
Net weight: 41g
Package Included:
1 Piece of Skydance EV1 LED Controller CV 1CH Power Repeater DC 5-36V Dimming
1 Piece of User's Manual
CE and RoHS approved
